| DFW-K / DFW-F cable branching switchgear（enclosed cable branching switchgear） | | Hits：22493 AddTime：2015-5-21 16:19:35 | | | | No.：DFW-K / DFW-F | Specifications：适应/adapt(for) | | Units：台套/PCS | Price：￥0.00 |
| | Details： | |
DFW-K / DFW-F cable branching switchgear（enclosed cable branching switchgear）
High-voltage cable branch box DFW□-12(F)/T630 is primarily used in cable conjunction points of 12kV ring network system as well as ordinary radiation system to connect high voltage electric power cables so as to make and safeguard them. Currently, it is one of ideal devices for 10kV electric power cable network.
This branch box adopts pre-made silicon rubber insertion terminal head as cable sub-connector with active display function. It leads other domestic counterparts in respect of technology.
The cabinet is made of 2mm thick stainless steel sheets. Advantages it owns include complete enclosure and insulation, erosion resistance, maintenance-free, structural compactness, space efficiency, easy to install, convenience and flexibility as well as flood-proof ability.
Products fall into 6 main categories like ordinary (switch optional), flood-proof (switch optional) and touchable (switch optional) and so on.
Branch box with SF6 load switch is able to reliably interrupt load current from branch circuit and constitute ring network power supply mode as well to considerably improve power supply reliability.

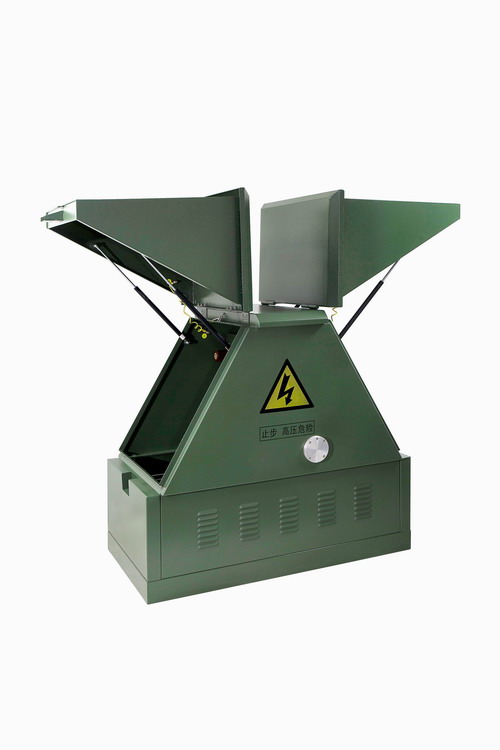

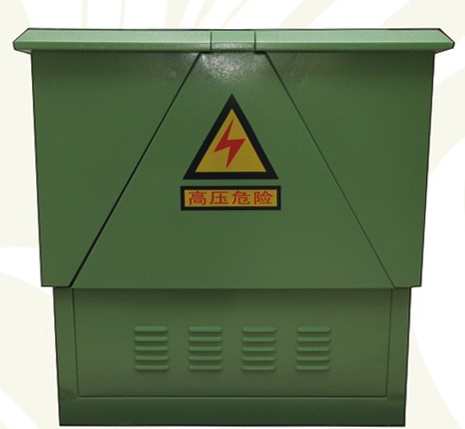

DFW-12 高压电缆分接箱（带电缆）

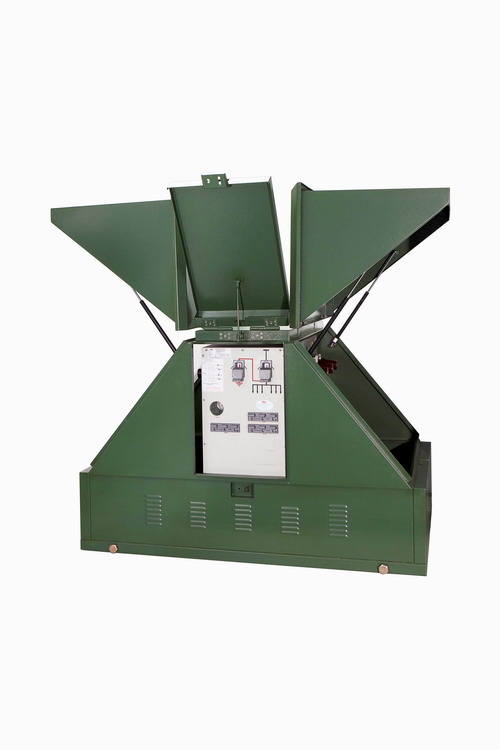

DFW-12 高压电缆分接箱（带开关）1

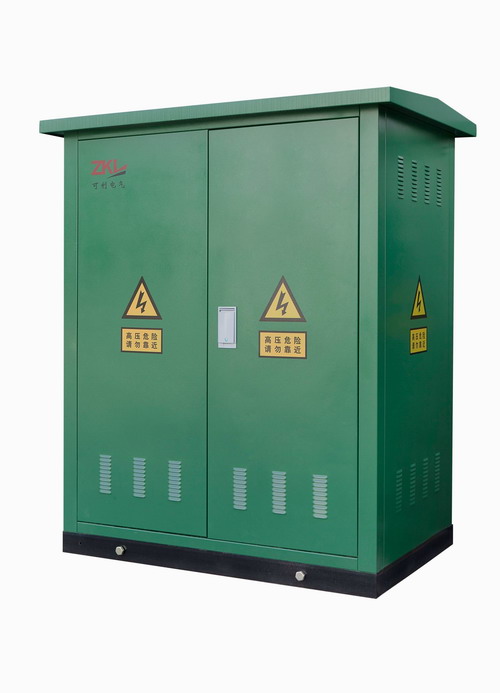

DFW-12 高压电缆分接箱（带开关）2

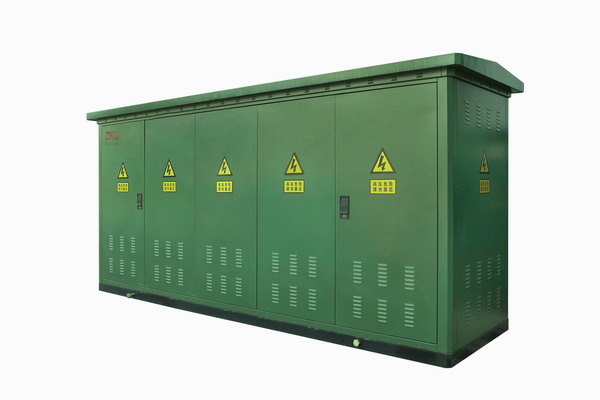

DFW-12高压电缆分接箱（带开关）
